SPECIFICATIONS

433MHz CH9102F: Q134

433MHz CP2104: H253

868MHz CH9102F: Q168

868MHz CP2104: H240

915MHz CH9102F: Q211

915MHz CP2104: H252

923MHz CH9102F: Q388

923MHz CP2104: -

Brand Name: lilygo

Certification: NONE

Compatible Audio & Video Equipment Style: Amplifier

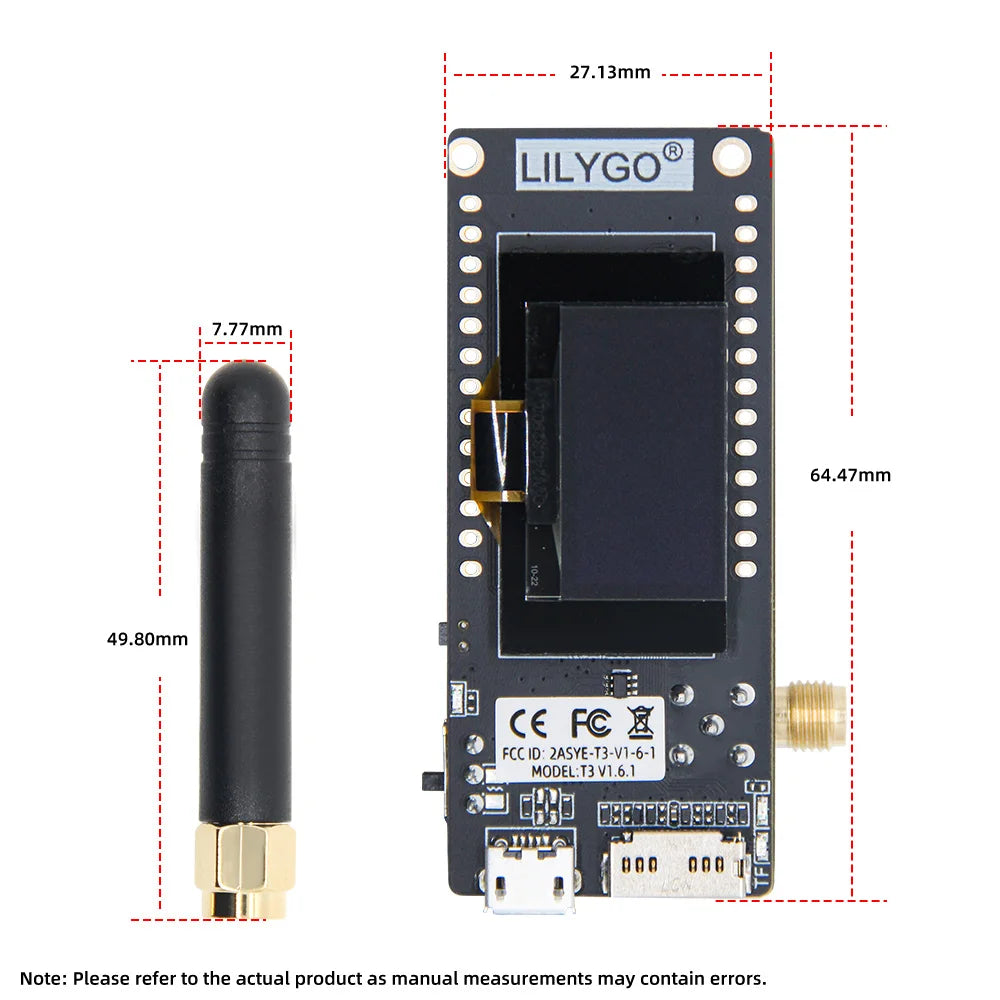

Dimensions (WxHxD)): 60*30*20mm

High-concerned chemical: None

Model Number: LoRa32 V2.1_1.6.1 version

Origin: Mainland China

Package: Yes

SX1276 915MHz TCXO: Q430

Weight: 20g

1. LoRa32 V2.1” and “T3 V1.6.1” refer to the same product; only the naming is different.

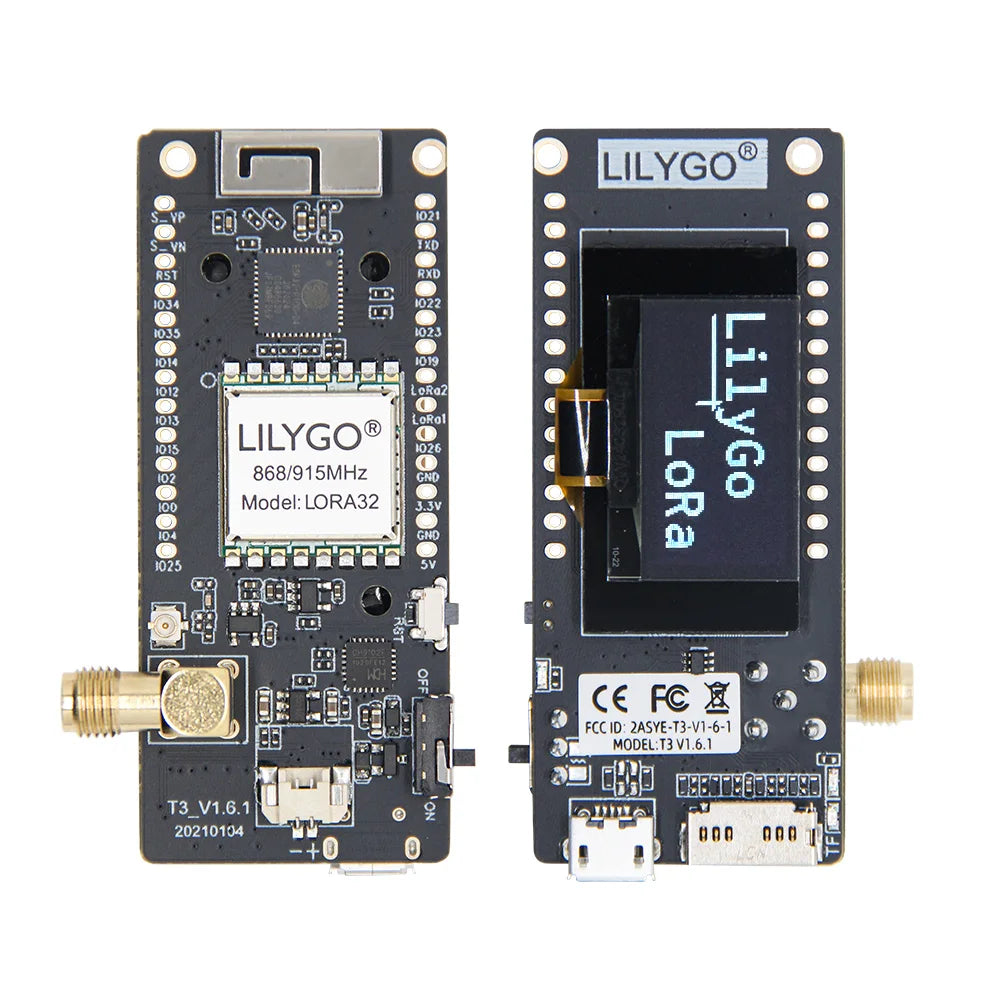

2. The board is labeled “T3 V1.6.1 20210104” on the PCB.
3. 20210104” indicates the development date, NOT the production date.
4. Differences in model name on packaging or product marking are normal.

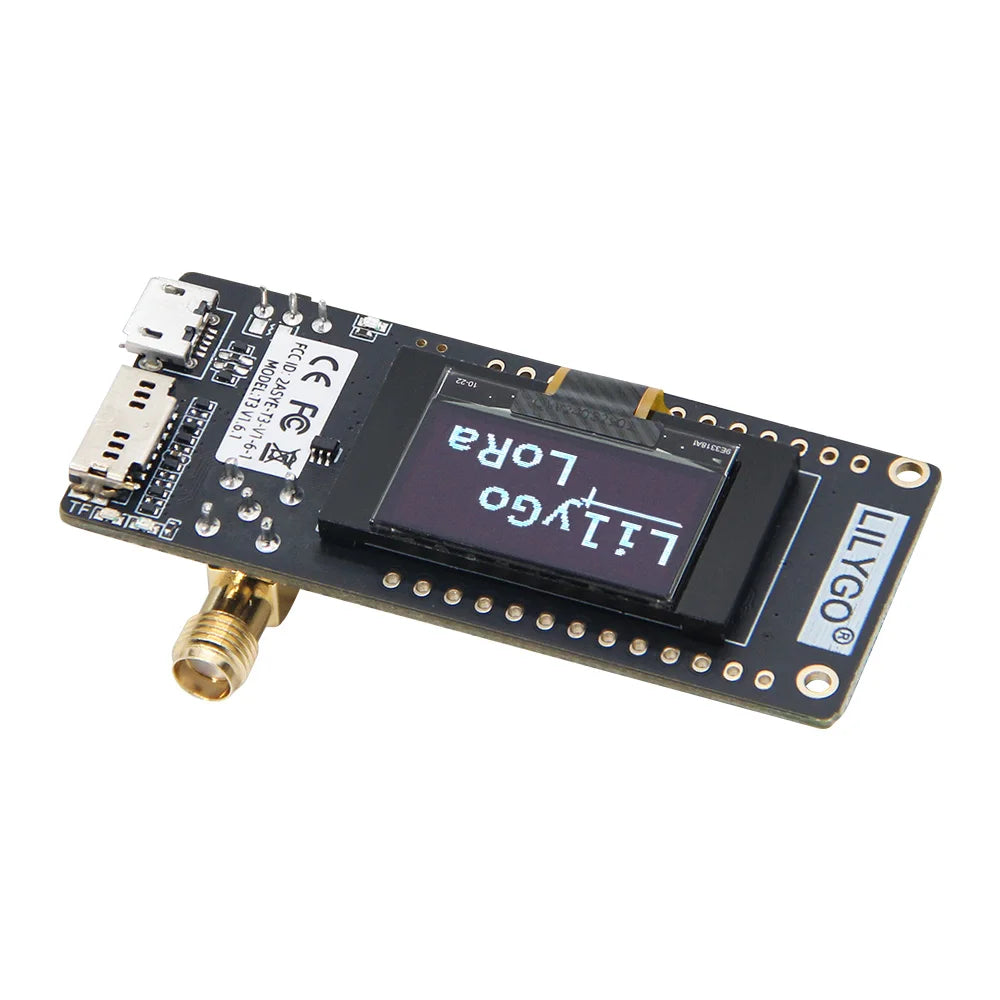

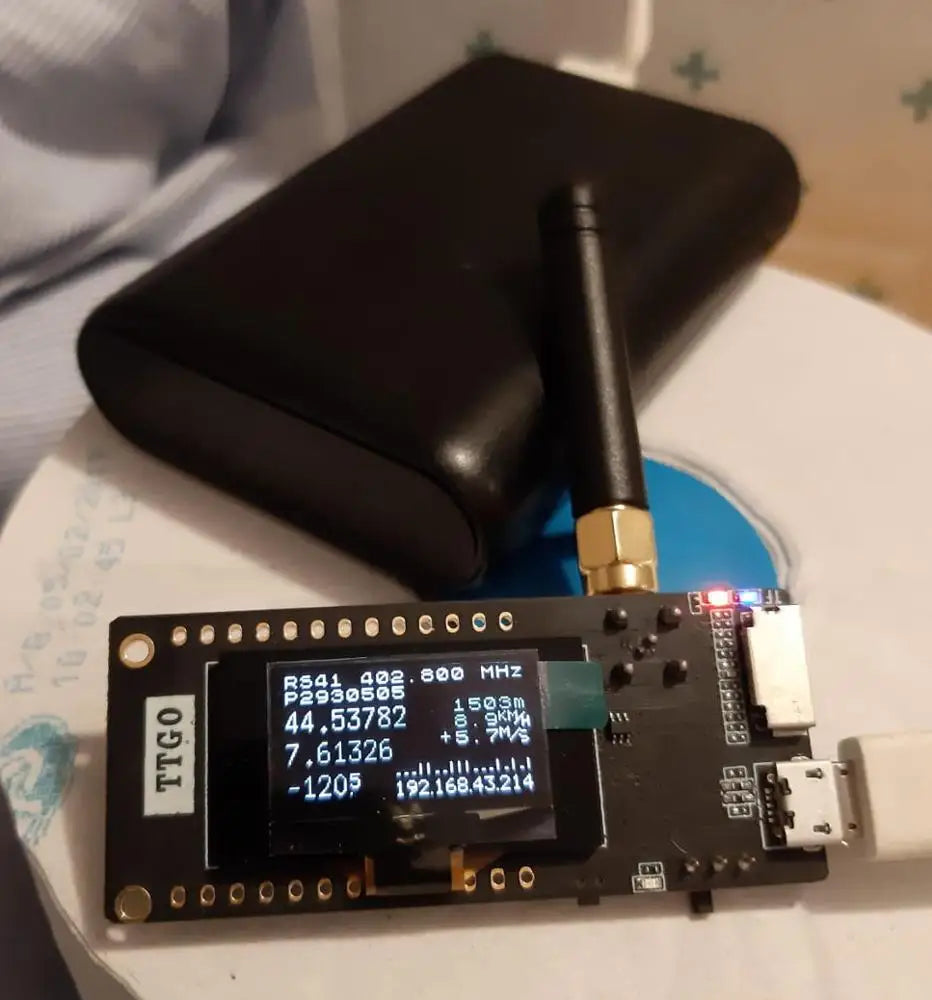

LoRa32 V2.1_1.6 Introduce

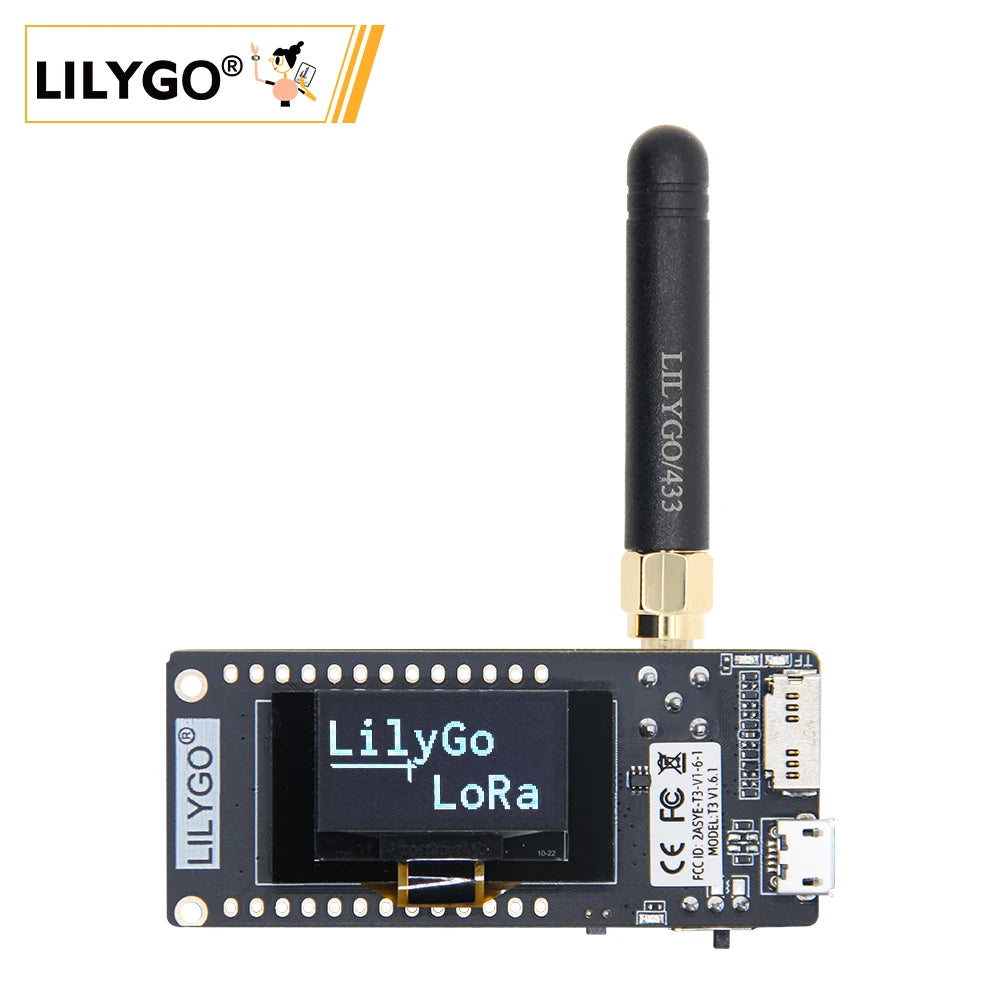

• We have enhanced the capabilities of the LoRa V2.1 board by adding an SMA antenna.

• Additionally, we have modified the power switch interaction mode for improved performance. The SMA antenna improves signal transmission.

ℹ️Product Information

Check out our GitHub repository for sample code and more detailed information about this board.

• LILYGO-LoRa-Series-Github

• Cooperate-Paxcounter-Github

• Cooperate-Disaster Radio-Official

• Cooperate-Disaster Radio-Github

• Cooperate-Disaster Radio V0.2.0-Github

⚠️Notice:The shipping list does not include battery and SD card.



The Meshtastic firmware is not adapted to the TCXO version yet.

You can add the below sentences in the source codes to make it work.

• https://github.com/Xinyuan-LilyGO/LilyGo-LoRa-Series



Or you can ask in the github or community of Meshtastic:

• https://github.com/meshtastic/firmware/issues
• https://meshtastic.discourse.group/

LoRa32 Specifications
MCU	ESP32
Flash	4MB
Wireless Connectivity	Wi-Fi 802.11
	Bluetooth V4.2 + Bluetooth LE
Programming Platform	Arduino-ide、Micropython
Onboard Functions	TF Card Slot USB or 3.7V Lipo Battery Power Supply Battery Switch CH9102F
Onboard Button	Reset + Boot

Screen Specifications
Type	OLED	Resolution	128 x 64
Drive	SSD1306	Size	0.96-inch Diagonal
Interface	I2C	I2C Interface	SDA--IO21 SCL--IO22
Text Color	White	Background Color	Blue

Low Power LoRa Transceiver
LoRa Module	SX1276	SX1278
Frequency Bands	868/915/923MHz	144-148MHz/433MHz
High-efficiency PA	+14dBm	+14dBm
Low RX Current	9.9mA	9.9mA

LoRa32

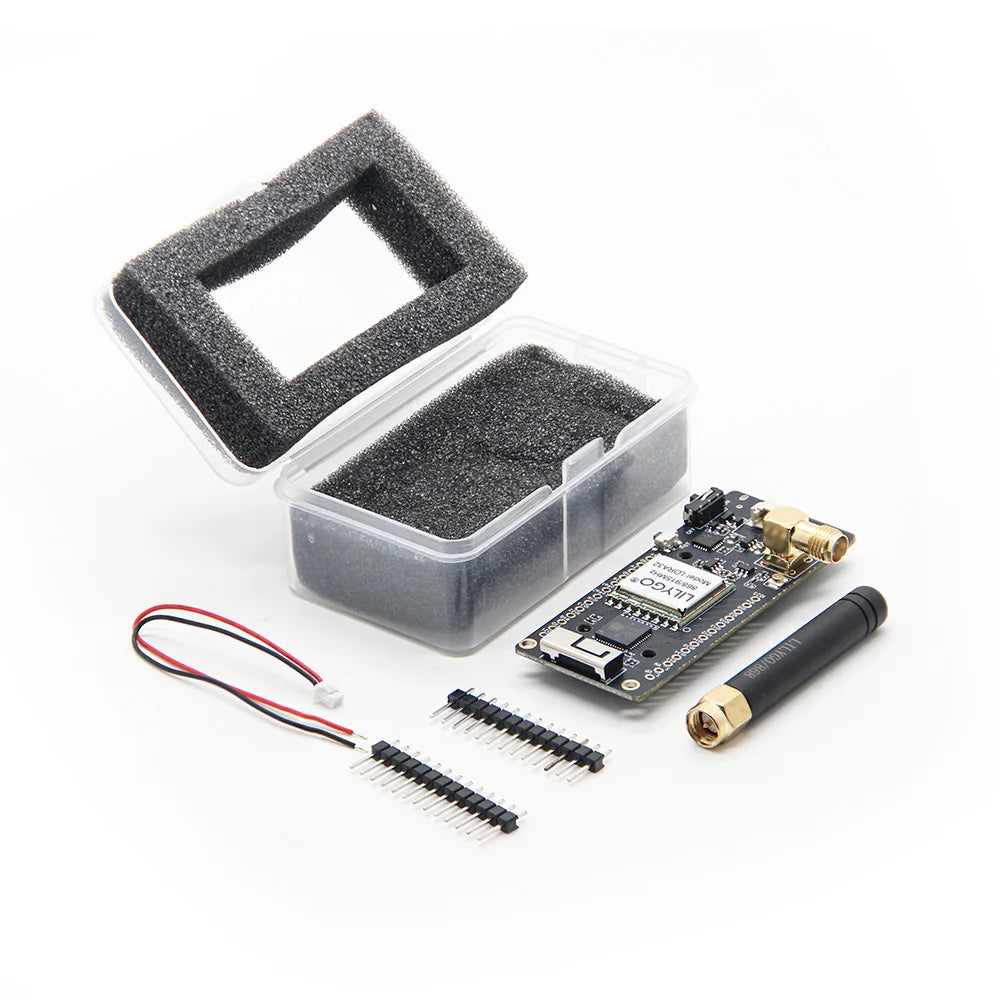

	What's in the box?
	1 X LoRa32 Module
	1 X LoRa Antenna
	2 X Pin
	1 X Power Cable(Jst 2pin 1.25mm)
